Civil 3D Dynamo Quantity Automation

A computational BIM framework executing automated spatial queries and volumetric calculus on complex drainage pipe networks, exporting comprehensive Schedules of Quantities directly from 3D models.

Dynamo BIM + Python Nodes GD05 / NZ Standards Compliant 95% Reduction in Manual Calculation Time

Visual Graph Logic & Output

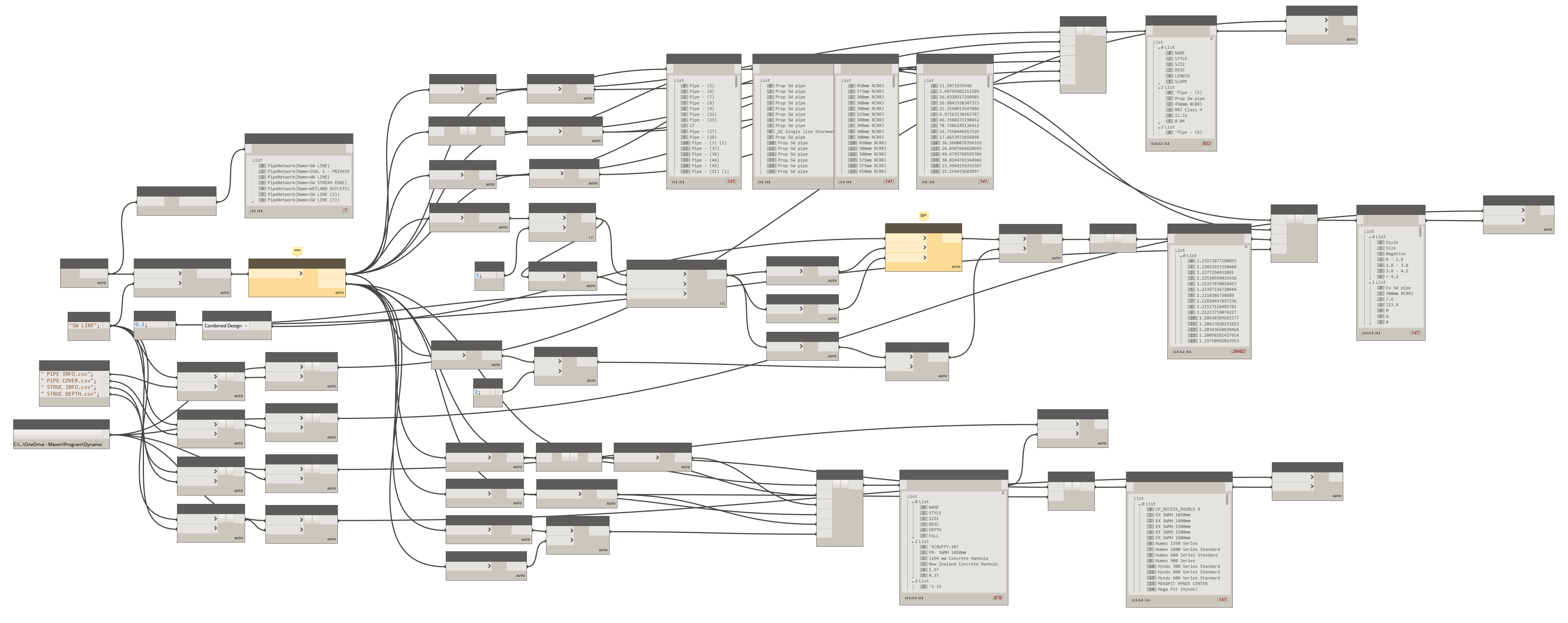

Civil 3D Dynamo Graph Output (HW-SOQ-DRAINAGE.png)
High-Res Image
Civil 3D Dynamo Script Drainage SOQ Graph
💡 Visual Programming Interface: The Dynamo canvas extracts parameters from Civil 3D Pipe Networks, conducts geometric analyses via Python nodes, and formats the structural quantities into structured schedules.

Live BIM Quantity Take-Off Sandbox

Interact with the model parameters below. As you adjust the pipe run properties, the embedded logic simulates the actual Civil 3D Dynamo calculation engine, dynamically updating the trench cross-section profile, the underlying engineering calculations, and the exported NZ-standard quantity schedules in real-time.

Network Parameters

Pipe Diameter 300 mm
Pipe Length 45 m
Start Invert Depth 1.20 m
End Invert Depth 2.20 m
Bedding Material AP20 Scoria
Ground Level AP20 Bedding 300mm W = 0.90 m Depth = 1.70 m
Auckland Council Trench Policy Standard width defines trench clearance as OD + 600mm to permit structural compaction.
Volumetric Method Trench excavation volumes are calculated using structural profile averages subtracted by pipe displacement volume.
Drainage Schedule of Quantities (SOQ) Standard: NZS 3910 / CESMM4
Item Code Description Unit Quantity
D-1.01 Pipe Excavation & Backfill (Trench depth 0.0m - 1.5m) m³ 0.0
D-1.02 Pipe Excavation & Backfill (Trench depth 1.5m - 3.0m) m³ 0.0
D-1.03 Pipe Excavation & Backfill (Trench depth > 3.0m) m³ 0.0
D-2.01 Granular Trench Bedding (AP20 Scoria or similar) m³ 0.0
D-3.01 Concrete Class 2 Pipeline, DN 300 (Depth 0.0m - 1.5m) m 0.0
D-3.02 Concrete Class 2 Pipeline, DN 300 (Depth 1.5m - 3.0m) m 0.0
D-3.03 Concrete Class 2 Pipeline, DN 300 (Depth > 3.0m) m 0.0
💡 Note: The Dynamo script evaluates linear interpolation across gradients to partition pipe segments into exact pay item brackets.
Welcome to Dynamo Civil 3D Python Kernel Console. Ready.
💡 Event Log: Shows diagnostic telemetry captured during the extraction and geometric compilation.

Resolving Civil Engineering Challenges

NZS 3910 Depth-Bracket Classification

New Zealand civil construction contracts pay pipeline installation by depth categories (0-1.5m, 1.5-3.0m, etc.). Manual calculations rely on broad averages, introducing significant audit risks. The Dynamo framework dynamically intersects the varying slope vector of every pipe against the surface terrain grid, splitting each pipe into exact mathematical segments and allocating them to their respective pay items instantly.

Vector Projection Dynamic Interpolation NZS 3910 Compliance

True Volumetric Trench Profiles

Simplistic calculators ignore bedding offsets and outer pipe diameters. This Python node extracts actual structural outer boundaries, applies custom width buffers based on local design guidelines (like Auckland Council GD05), and performs integration of varying bedding depths to compute true excavation, aggregate bedding, and backfill volumes without human error.

BIM Geometry API GD05 Compaction Buffers Aggregate Calculus

Junction Deductions & Intersections

At drainage intersections (manholes, junctions), pipes overlap. Simply multiplying length by volume double-counts materials at junctions. The script retrieves manhole structural models, performs a 3D geometric Boolean subtraction at each node, and trims pipe lengths exactly to the manhole wall boundaries. This ensures quantities match reality perfectly for bidding and construction.

3D Solid Booleans Junction Deduction Audit-ready Quantities

Computational Pipeline Topology

STEP 1

Civil 3D Pipe Network Ingestion

Dynamo accesses the active DWG database through the COM API, retrieving spatial alignments, invert elevations, structure properties, and the TIN Surface terrain model dynamically.

STEP 2

Python Vector Calculations

A custom Python block iterates through the network topology, evaluating the mathematical intersection of the pipe gradient lines with the ground surface, and calculates trench cross-sectional dimensions based on Auckland Council specs.

STEP 3

Excel SOQ Sheet Generation

Outputs are aggregated into a standardized format and written via an interop engine to a client-deliverable Excel Spreadsheet, complete with formatted item codes matching the contract schedule.
